Designed to repair small and medium damage with maximum speed and ease. Sturdy and compact, it occupies very little space inside the bodyshop.
Minibench
A versatile bench with
A small footprint allows the Minibench to fit where competitors just don't. Yet its rugged design means it can be used to repair a wide range of vehicles safely.
You can lift, lift and repair, or even lift, repair, and measure with the Touch. The Minibench is a versatile bench that can be used to meet your specific needs.
The Minibench can regularly lift up to 7,700lbs based on your selected model. This means it's suitable for most common vehicles including commercial vehicles, SUVs, and 4x4s.

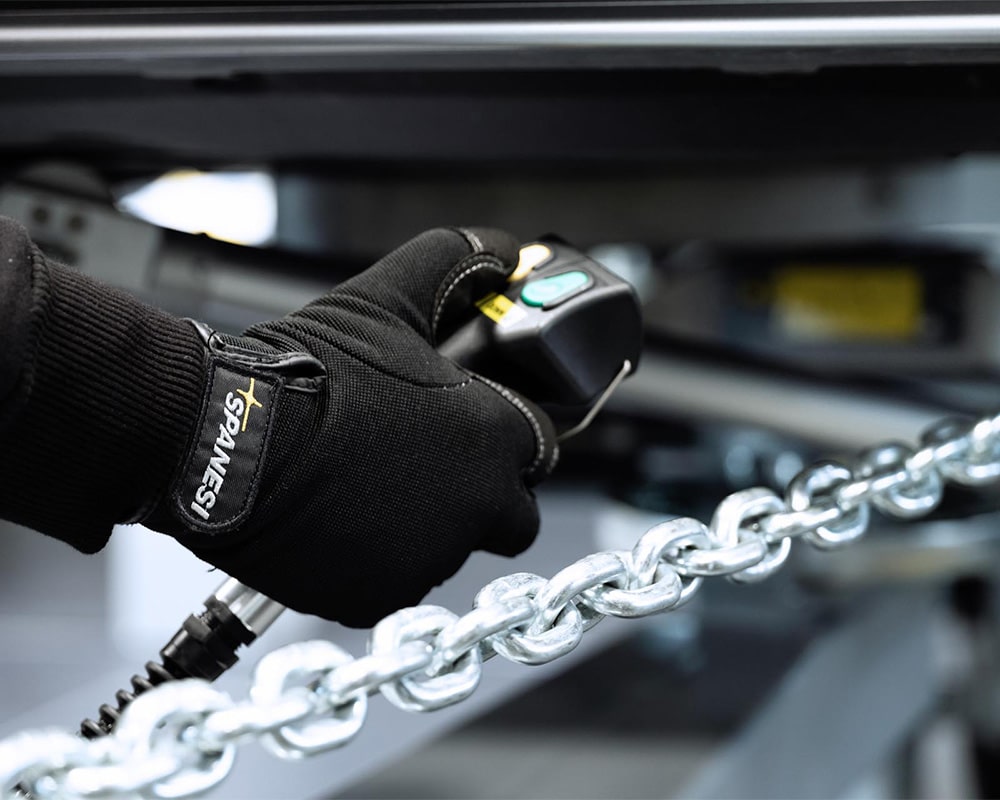

The addition of a pulling column provides 6 tons of pulling force and allows for pulling angles all around the vehicle. Utilize our side pull adaptor for a complete range. (Excludes the ECO model).
The Minibench is Perfect For
The Minibench is a compact and robust repair bench designed to quick and easily handle minor to moderate vehicle damage. With a compact rugged design, it can accommodate a wide range of vehicles including commercial vehicles, SUVs, and 4x4s.

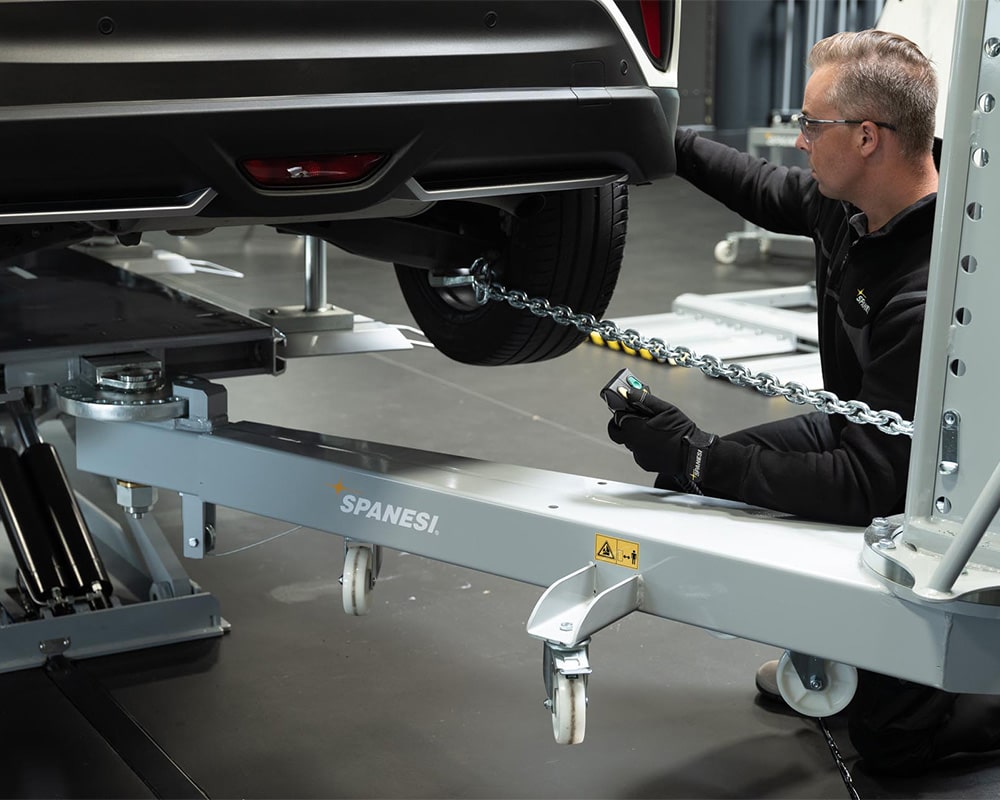

It’s versatile as both a lift and a straightening bench. The included 6 ton pulling column enables 360° pulling for comprehensive straightening (excluding the ECO model). When combined with the Touch Electronic Measuring System, technicians can accurately restore vehicles to their original factory specifications, ensuring precise and efficient repairs with the Minibench.
With an intuitive user-friendly design, the Minibench includes smooth edges to prevent vehicle damage during loading. Low-profile floor plates allow technicians to effortlessly load and unload vehicles. These innovative features make the Minibench an indispensable tool for daily use in any bodyshop.
Fast and easy to use. Perfect for small and medium damage.
Safe and automatic bench connections with 360° pulling.
Rounded corners help eliminate vehicle damage.
Bench is compatible with our Touch Measuring System.
Minibench

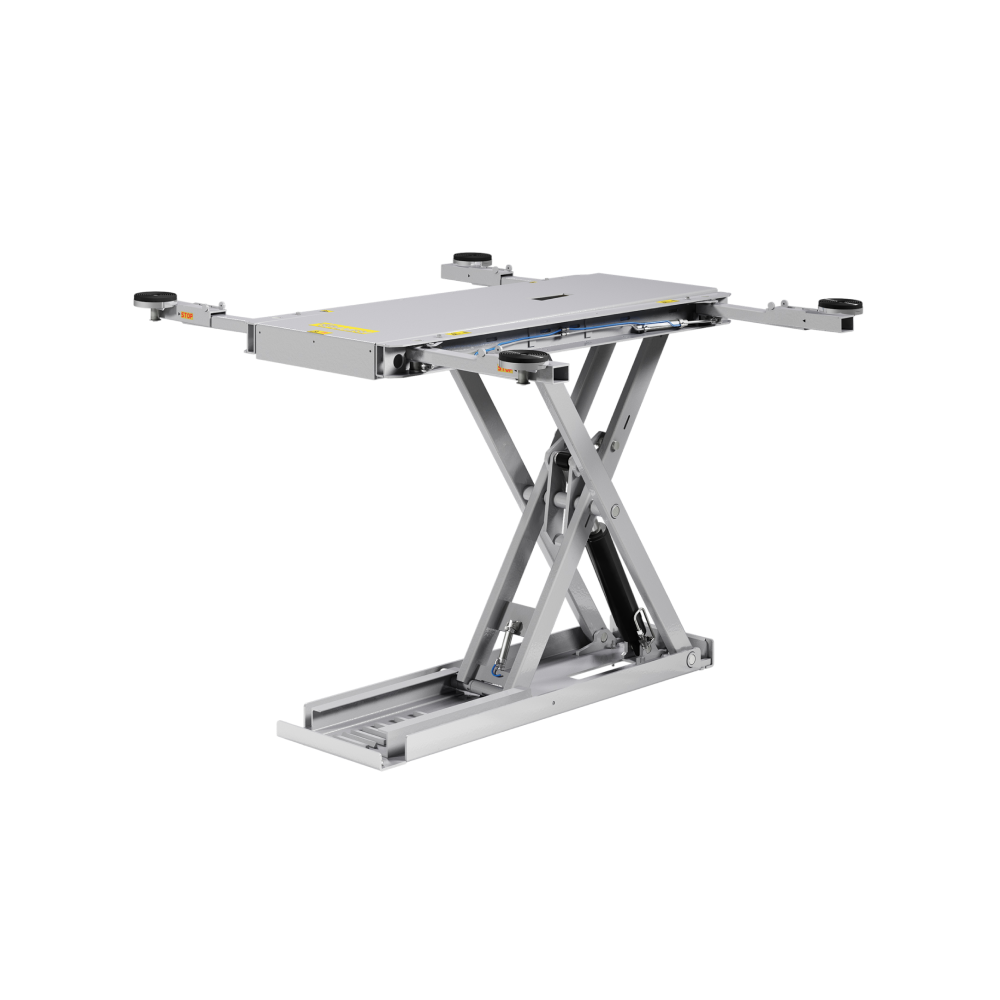

The Minibench Eco is a pneumo-hydraulic lift with pneumatic pump, pneumatic arms, and adjustable support buffers.
| ECO Specifications: |
|---|
| Pneumo-hydraulic Lift |
| Pneumatic Pump & Arms |
| Capacity: 4,850 / 6,100 lbs |
| Length: 5' 5" |
| Min Height: 4.3" |
| Lifting Height: 4' 1" |
| ATEX Option - 6,100 LBS Only |
| 4 Support Buffers |
Minibench
The Minibench is a pantograph electro-hydraulic lift with a front pulling column insert location for easy pulling.
| Basic Specifications: |
|---|
| Lift & Pulling Column |
| Control Box |
| Capacity: 4,850 / 5,500 LBS |
| Length: 6' 9" |
| Min Height: 3.9" |
| Lifting Height: 4' 5" |
| 4 Sliding Side Floor Plates |
| 4 Buffers & 4 Clamps |
Minibench
The Minibench DT is a pantograph electro-hydraulic lift with front and back pulling column insertion locations for advanced pulling and repairs.
| DT Specifications: |
|---|
| Lift & Pulling Column |
| Control Box |
| Capacity: 4,850 / 5,500 lbs |
| Length: 6' 9" |
| Min Height: 3.9" |
| Lifting Height: 4' 5" |
| 4 Sliding Side Floor Plates |
| 4 Buffers & 4 Clamps |
Minibench
The Minibench Maxi Plus is a pantograph electro-hydraulic lift with front and back pulling column insertion locations and a high lifting capacity.
| Maxi Plus Specifications: |
|---|
| Lift & Pulling Column |
| Control Box |
| Capacity: 7,700 LBS |
| Length: 7' 7" |
| Min Height: 4.25" |
| Lifting Height: 5' 3" |
| 4 Sliding Side Floor Plates |
| 4 Buffers & 4 Clamps |
Minibench

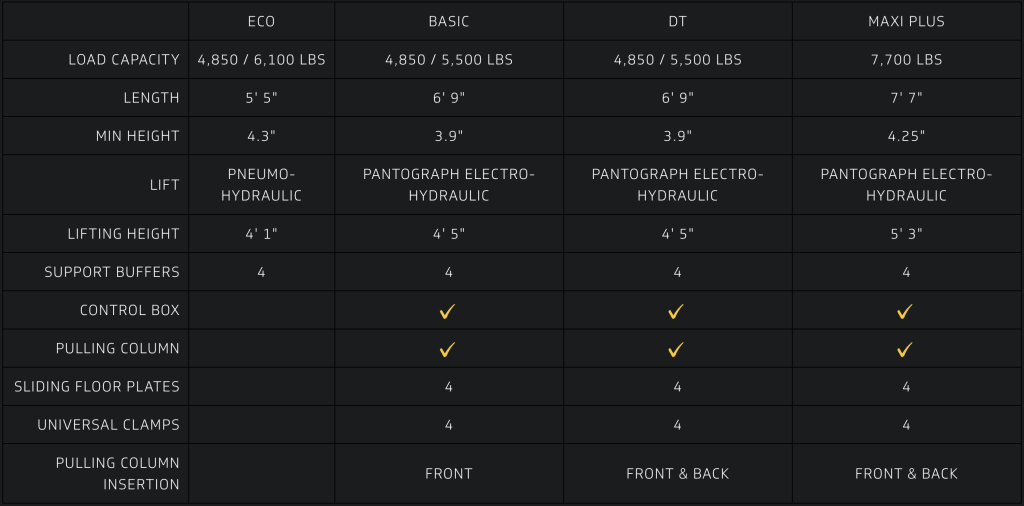

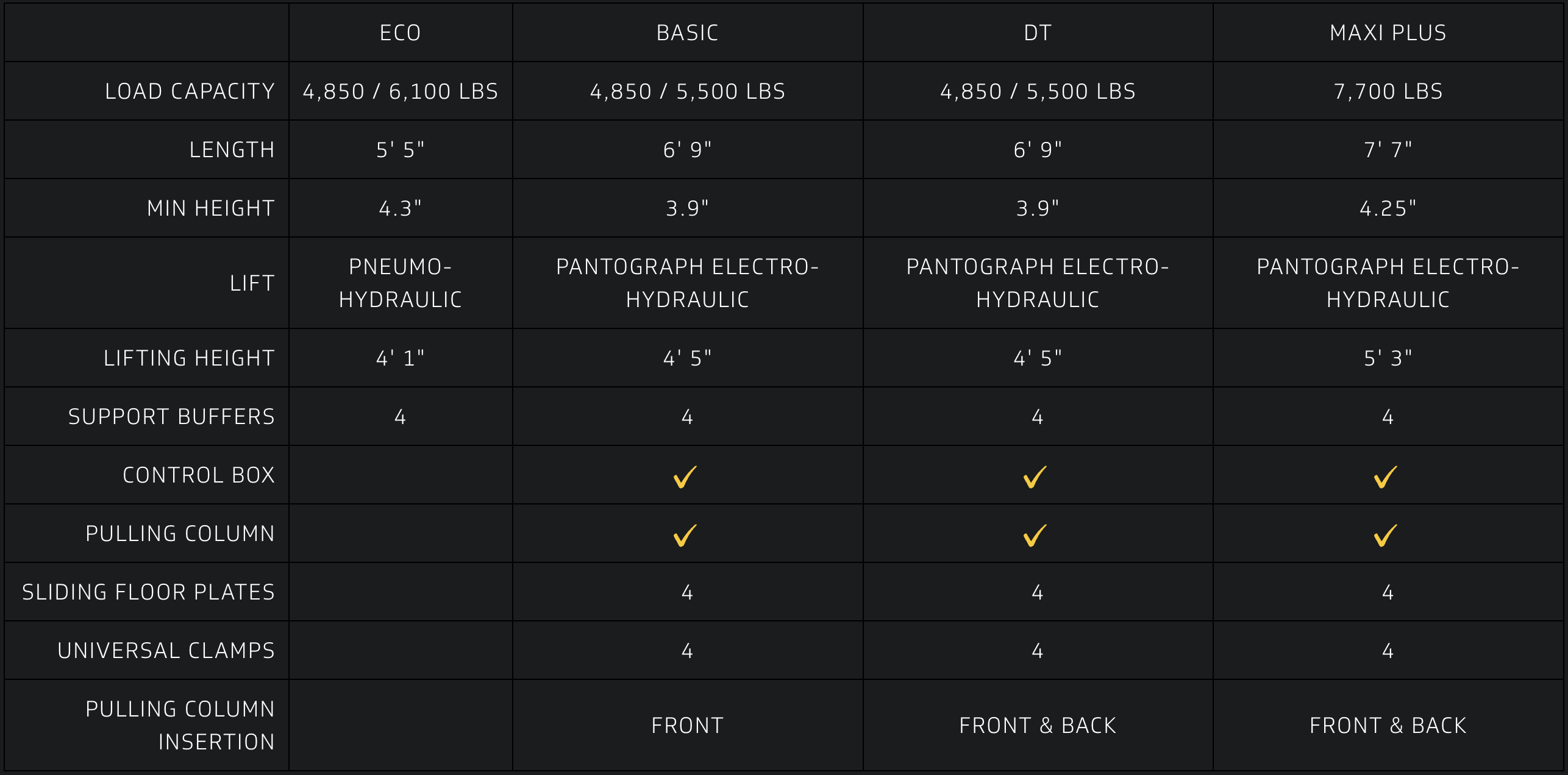

| ECO | Basic | DT | Maxi Plus | |
|---|---|---|---|---|
| Load Capacity | 4,850 / 6,100 lbs | 4,850 / 5,500 lbs | 4,850 / 5,500 lbs | 7,700 lbs |
| Length | 5' 5" | 6' 9" | 6' 9" | 7' 7" |
| Min Height | 4.3" | 3.9" | 3.9" | 4.25" |
| Lift | Pneumo-Hydraulic | Pantograph Electro-Hydraulic | Pantograph Electro-Hydraulic | Pantograph Electro-Hydraulic |
| Lifting Height | 4' 1" | 4' 5" | 4' 5" | 5' 3" |
| Support Buffers | 4 | 4 | 4 | 4 |
| Control Box | ||||
| Pulling Column | ||||
| Sliding Floor Plates | 4 | 4 | 4 | |
| Universal Clamps | 4 | 4 | 4 | |
| Pulling Column Insertion | Front | Front & Back | Front & Back |
Smart. Fast. Powerful.
Optional
Get more out of your Minibench with optional accessories from Spanesi. Expand the capabilities of this small but powerful bench to increase service offerings and improve technician repair options and vehicle compatibility. Click each accessory to learn more.
Lever for Minibench Pulling Column’s Chain.
Side-Pulling Adapter for Minibench’s Pulling Column.

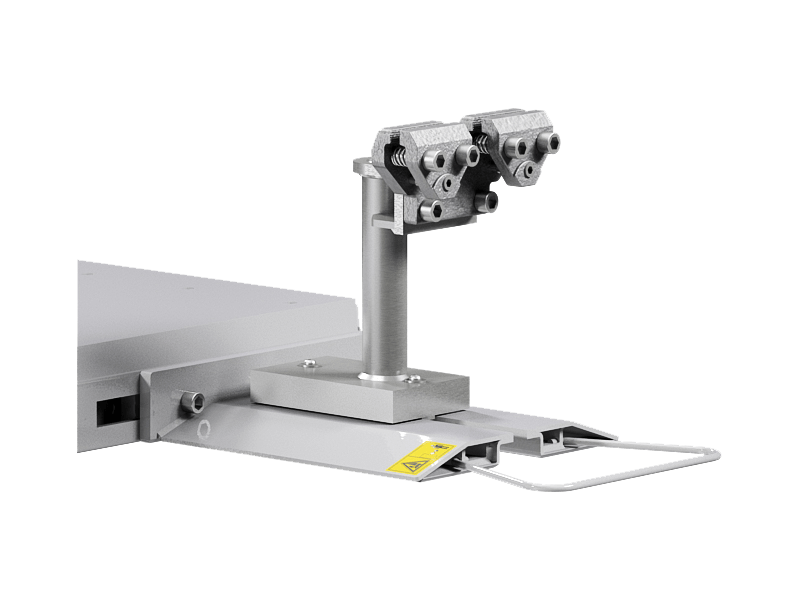

Kit of Sill Clamps with Columns for use with the Touch System.

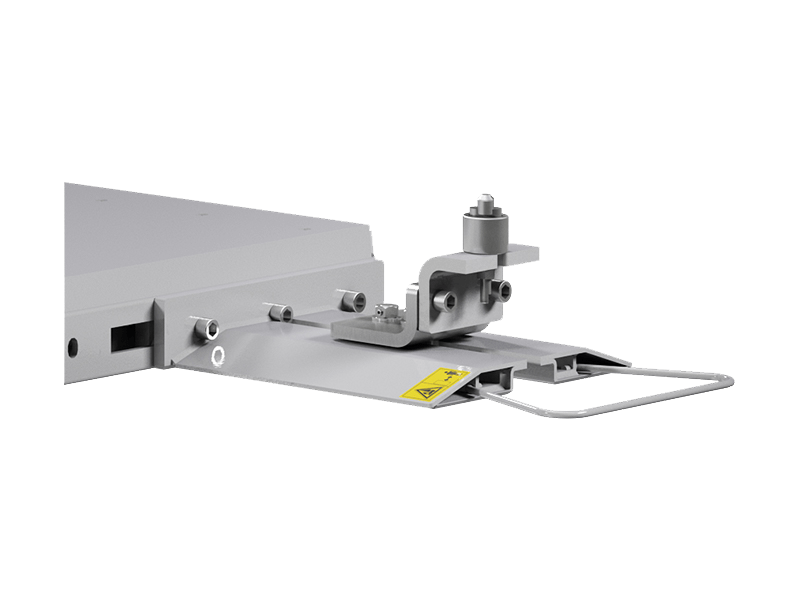

Special Clamps for use with BMW vehicles.
Clamp Kit designed specifically for use with 4WD Vehicles.
Crossbars Kit for use with Nissan and Renault Vehicles.

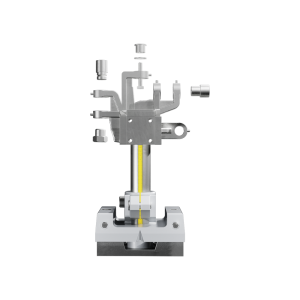

Complete Set of Universal Fixtures for the Spanesi Minibench with Trolley for Bushings and Heads. *Does not include WinStar.
Kit of Number 4 Trolleys (H660) for Minibench. Max total capacity 6600 lbs.
Kit of Number 4 Trolleys (H660) for Minibench. Max total capacity 4850 lbs.
Wall Support for Minibench Normal Clamps and Buffers.
Set of 4 Buffers (60mm) for use with the Minibench.

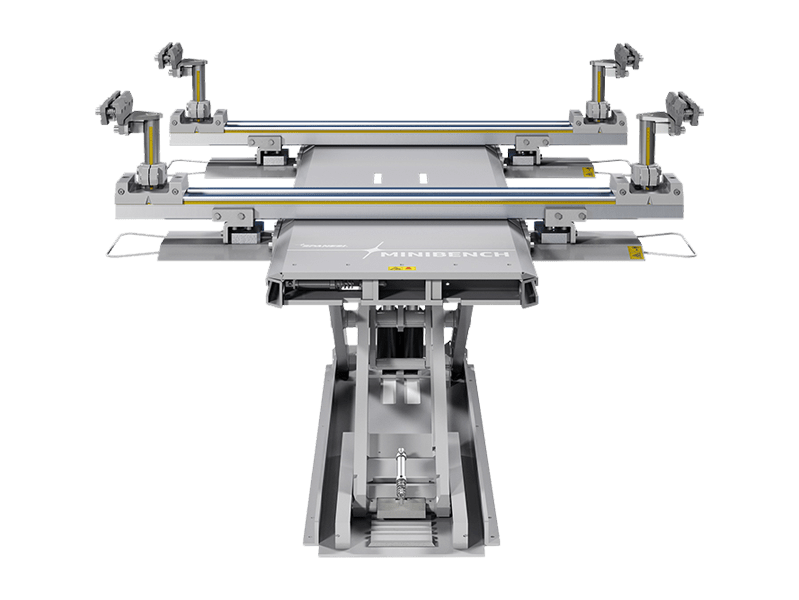

Set includes: 90MST001 – RH Clamp, 90MST002 – RH Sliding Base, 90MSTOO7 – LH Clamp, 90MST006 – LH Sliding Base, 90KTRAV020 – Pair of 1800MM crossbars. Dedicated kit for repairing commercial vehicles, SUVs, and 4x4s.
Get the compact and rugged lift of your dreams with the Spanesi Minibench. Built to handle small and medium repairs.
