Maximize your workspace with the Ponybench, the space-saving vehicle lift for small to mid-sized vehicles.
Ponybench
A Versatile Ponybench with a
The design of the Ponybench allows you to make the most of the space inside your bodyshop. When not in use, the bench disappears into the floor entirely.
The Ponybench is a fast and efficient multi-purpose bench with a capacity of up to 7700 lbs, making it suitable for most types of vehicles.
Use the Ponybench as a lift or a bench in order to quickly repair small and medium damage. Incorporate the Touch to improve repair accuracy to OEM specifications.
The Ponybench is available in multiple configurations. The Ponybench packages include wheel-lifting platforms, pneumatic arms, and adjustable support buffers.
The Ponybench is Perfect For
The Ponybench is a remarkably versatile and efficient collision repair system that is designed to handle small to medium vehicle damage. It’s compact design allows it to easily integrate into bodyshops with limited space, without compromising on strength and functionality.
With our Ponybench BT Plus model technicians can facilitate precise and controlled pulling utilizing a rugged and tough 360° pulling column with 6 tons of force. By focusing on accuracy and efficiency the Ponybench offers a reliable solution for both large and small bodyshops.

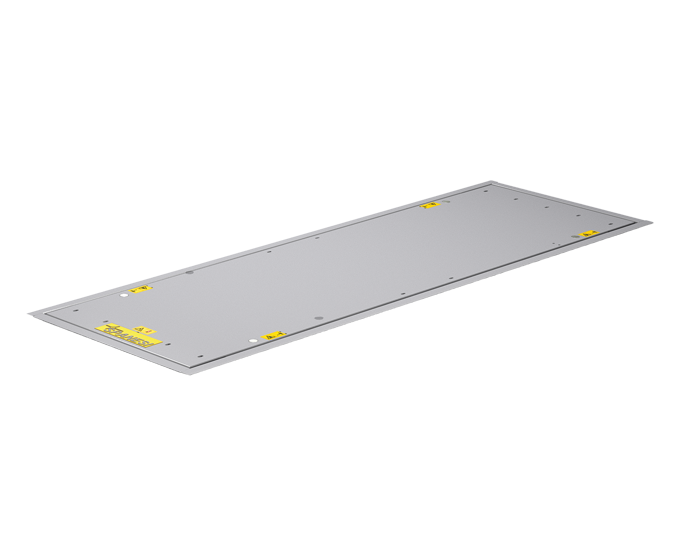

In-floor lifts retract when not in use.
Open and close automatically.

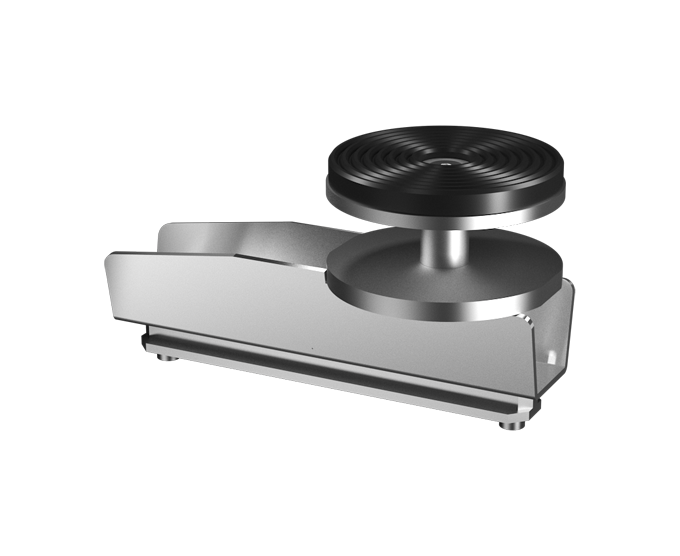

Support buffers make lifting easier.

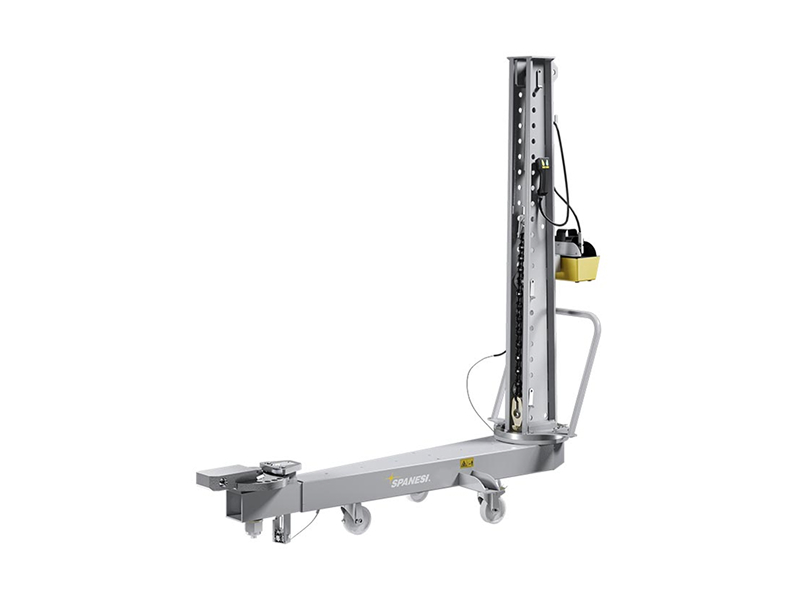

Pull with ease with the BT Plus Model.

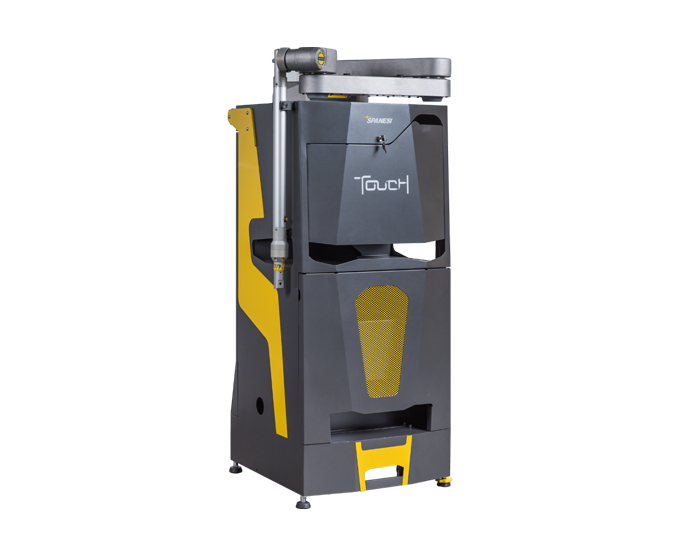

Compatible with the Touch System.
Ponybench
The Ponybench BT Plus is an electro-hydraulic lift with a pulling column, pneumatic arms, and support buffers.
| BT Plus Specifications: |
|---|
| Pneumatic Arms |
| Control Box |
| Capacity: 7,700 lbs |
| Length: 7' 3" |
| 4 Support Buffers |
| Pulling Force: 6 Tons |
| Lifting Height: 4' 9" |
| Width: 2' 3" |
Ponybench
The Ponybench BE 15 is an electro-hydraulic lift with pneumatic arms and adjustable support buffers.
| BE 15 Specifications: |
|---|
| Pneumatic Arms |
| Control Box |
| Capacity: 6,600 LBS |
| Length: 5' 5" |
| 4 Support Buffers |
| Lifting Height: 3' 2" |
| Width: 2' 3" |
Ponybench

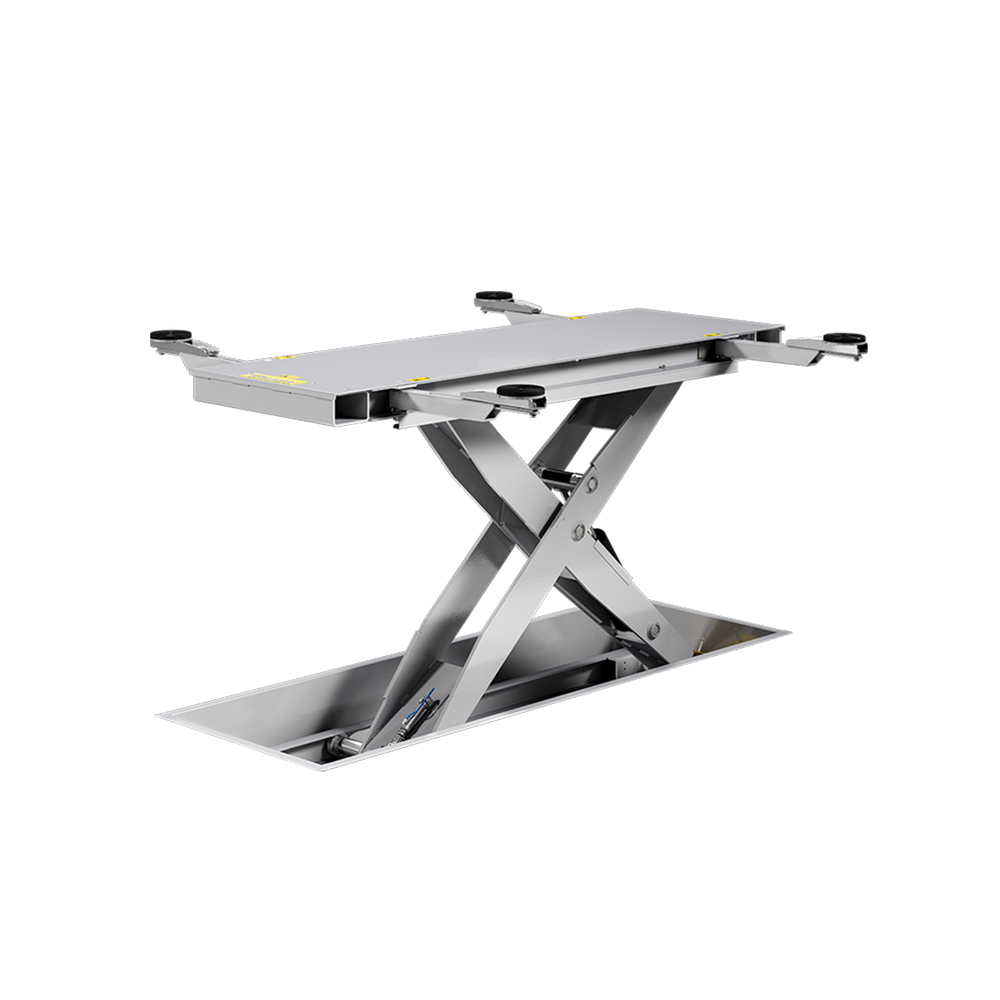

The Ponybench BE Plus is an electro-hydraulic lift with pneumatic arms and support buffers.
| BE Plus Specifications: |
|---|
| Pneumatic Arms |
| Control Box |
| Capacity: 7,700 LBS |
| Length: 7' 3" |
| Support Buffers |
| Lifting Height: 4' 7" |
| Width: 2' 3" |
Ponybench

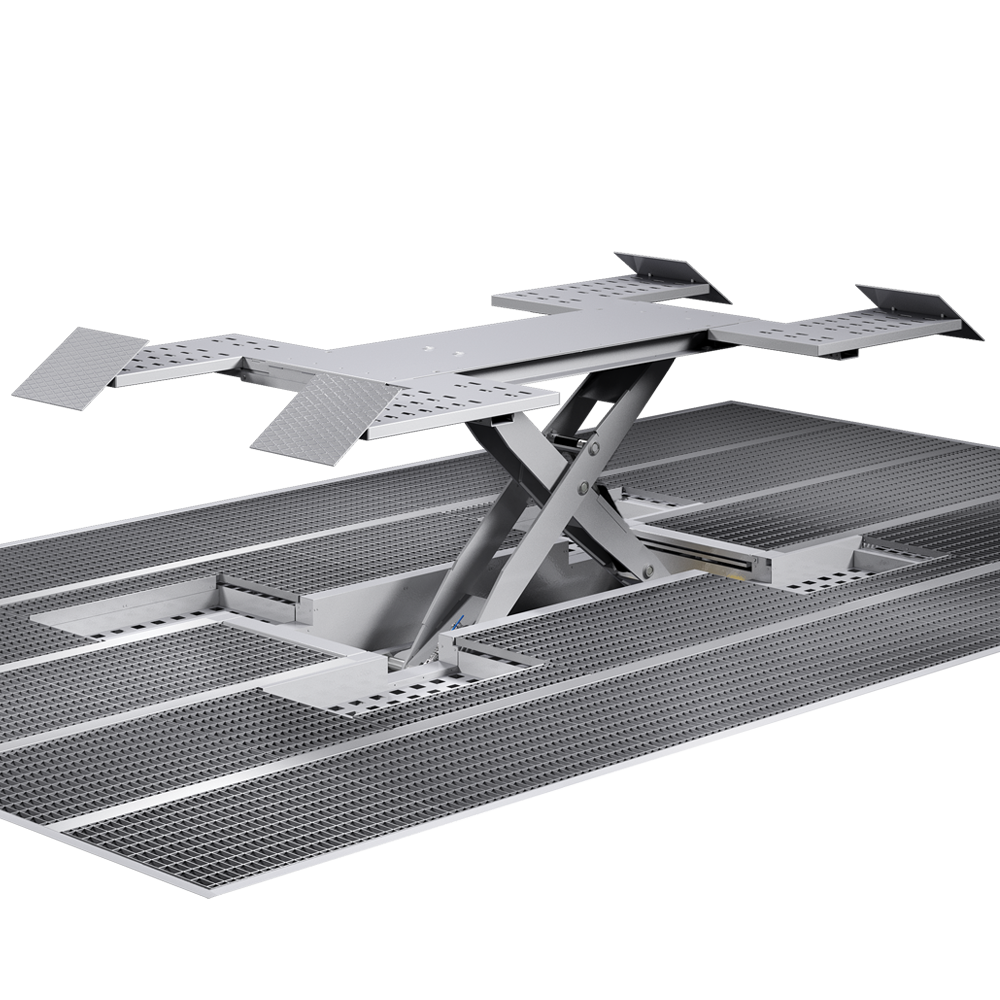

The Ponybench PR Plus is an electro-hydraulic lift with wheel-lifting platforms.
| PR Plus Specifications: |
|---|
| Control Box |
| Capacity: 7,700 LBS |
| Length: 11' 5" |
| Wheel Lifting Columns |
| Lifting Height: 4' 7" |
| Width: 6' 2" |
Ponybench

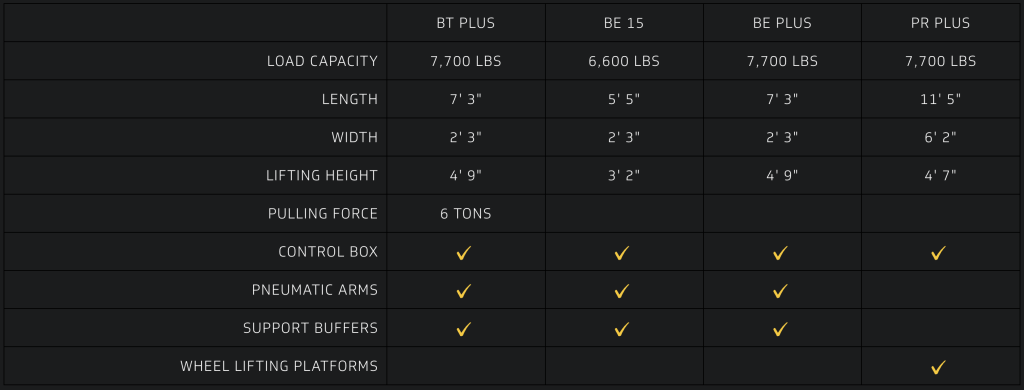

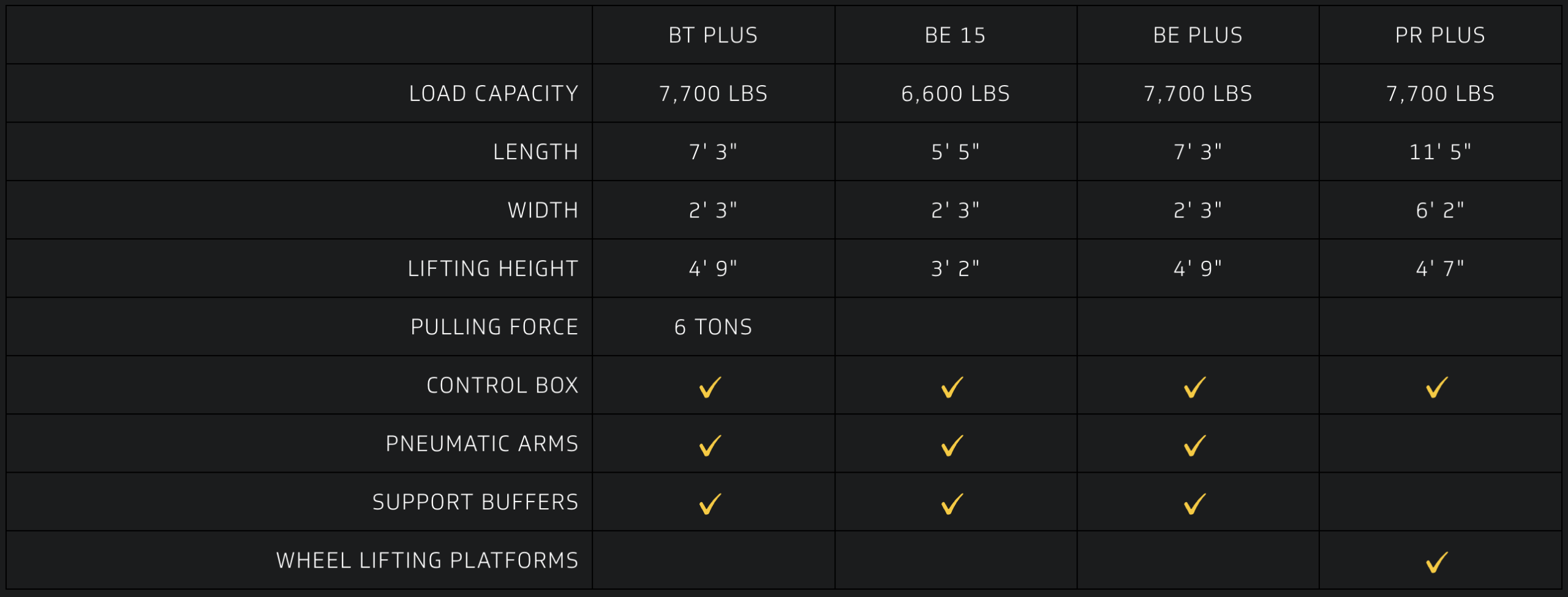

| BT Plus | BE 15 | BE Plus | PR Plus | |
|---|---|---|---|---|
| Load Capacity | 7,700 lbs | 6,600 lbs | 7,700 lbs | 7,700 lbs |
| Length | 7' 3" | 5' 5" | 7' 3" | 11' 5" |
| Width | 2' 3" | 2' 3" | 2' 3" | 6' 2" |
| Lifting Height | 4' 9" | 3' 2" | 4' 9" | 4' 7" |
| Pulling Force | 6 Tons | |||
| Control Box | ||||
| Pneumatic Arms | ||||
| Support Buffers | ||||
| Wheel Lifting Platforms |
Hidden. Versatile. Powerful.
Request a quote to learn more about the space-saving workstation designed to maximize your workspace.
