The Marea Manual Series is a range of infrared lamps and trollies designed to be easily movable throughout the body shop.
Marea Manual Series
Powerful Curing Lamps With A
Marea Series lamps emit concentrated heat that accelerate the drying process of paint to increase productivity and reduce cycle times.
Our design allows for easy movement and positioning of the lamps, providing optimal heat distribution for various vehicles.
Infrared lamps feature high-efficiency resistors that allow the beam to be radiated and concentrated only at the front, providing a 150% efficiency and 35% energy savings.
Focused heat from infrared lamps help to ensure even drying, preventing issues and surface imperfections. By ensuring proper curing, paint color accuracy is improved.
Mobile Infrared Lamps
The Marea Manual Series offer a flexible and efficient solution for drying paint in various areas of your body shop. These versatile and high performance units can be easily moved between preparation areas and spray booths, allowing technicians to target specific areas for accelerated drying.
By significantly reducing drying times, these curing units and trolleys help to increase overall productivity. Additionally, the focused heat from infrared lamps ensures even drying, minimizing the risk of defects like surface imperfections and orange peel.
Our lamps are high efficient, converting most of the energy into heat, reducing energy consumption and lowering operating costs. With adjustable settings and easy maneuverability, Spanesi infrared lamps provide a versatile solution for a variety of drying applications.
Available
Find the Marea Manual Series model that best fits your body shop needs. Our customizable options give you the ability to create the perfect setup. Increase shop productivity by purchasing a model that includes our 8-Program Electronic Control Panel and Pyrometer.
Have questions? Contact us and we would be happy to assist you.

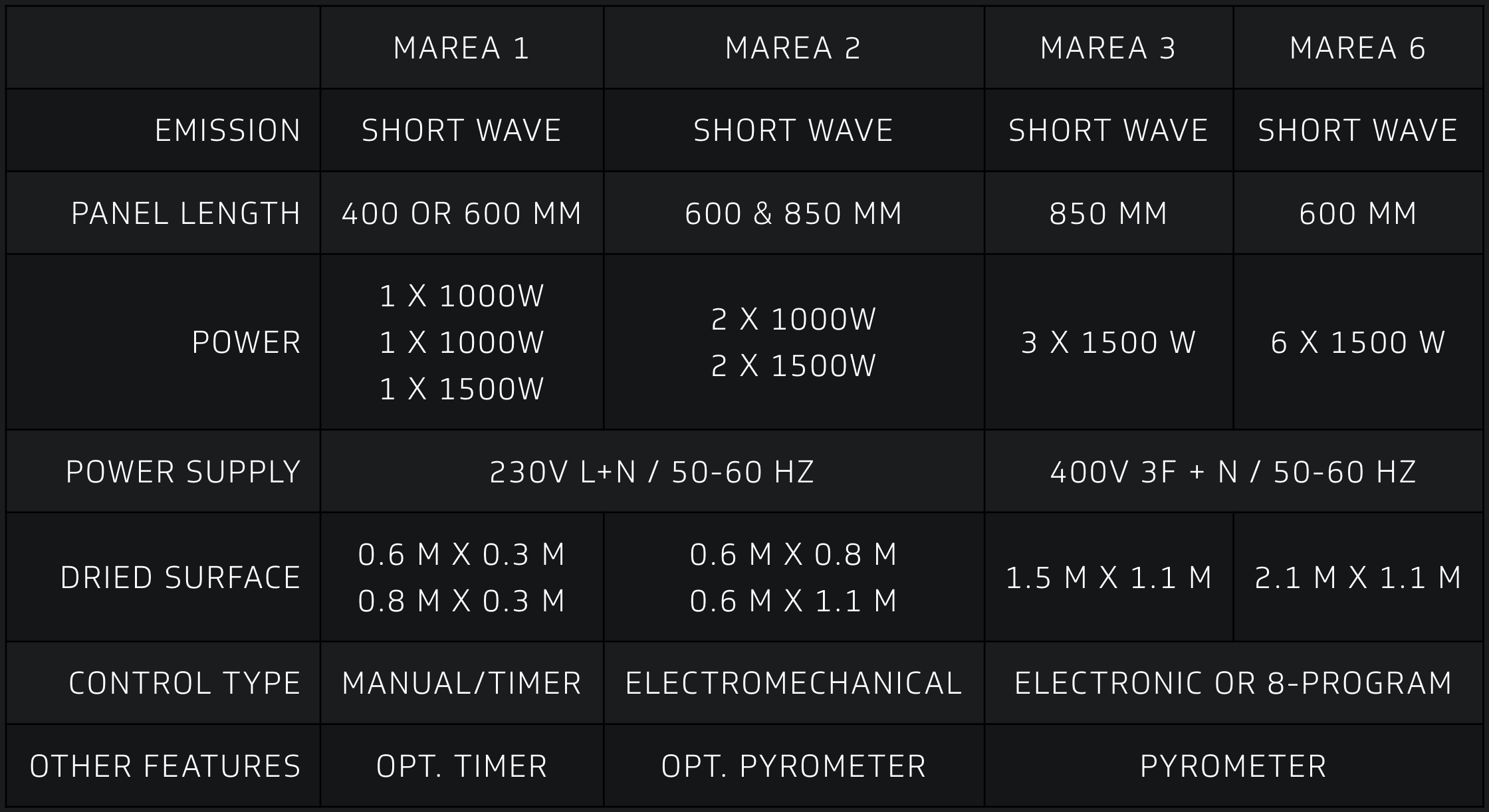

| Marea 1 | Marea 2 | Marea 3 | Marea 6 | |
|---|---|---|---|---|
| Emission | Short Wave | Short Wave | Short Wave | Short Wave |
| Panel Length | 400 or 600 mm | 600 & 850 mm | 850 mm | 600 mm |
| Power |
1 X 1000W 1 x 1000W 1 x 1500W |
2 X 1000W 2 X 1500W | 3 X 1500 W | 6 X 1500 W |
| Power Supply | 230V L+N / 50-60 HZ | 400V 3F + N / 50-60 HZ | ||
| Dried Surface |
0.6 m x 0.3 m 0.8 m x 0.3 m |
0.6 m x 0.8 m 0.6 m x 1.1 m | 1.5 m x 1.1 m | 2.1 m x 1.1 m |
| Control Type | Manual/Timer | Electromechanical | Electronic or 8-Program | |
| Other Features | Opt. Timer | Opt. Pyrometer | Pyrometer | |
Portable. Convenient. Powerful.
Optional
Get more out of your Infrared Curing Lamp with optional accessories from Spanesi. Expand the capabilities of your curing lamp to increase service offerings and improve technician repair options and vehicle compatibility.
Click each accessory to learn more.
Electrical output 150 W per manual lamp. Wavelength 395 mm +/- 5 mm. Power density 400 mW/CM2 (5 cm from the substrate)
Get the infrared lamp curing setup of your dreams with a Spanesi IR Trolley. Powerful and portable for ultimate convenience.
