Our Inframatic Series is a full range of aerial curing systems that utilize infrared heating elements and optional UV-A panels.
Inframatic Semi-Automatic
Semi-Automatic Infrared Curing with a

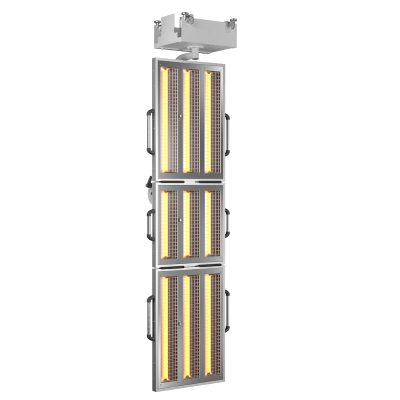

The Inframatic Series panels are installed on special rails that allow the lamps to be positioned and moved (length and width) to the most suitable location.
Each lamp can be adjusted by height and angle to achieve the optimal surface radiation, increasing efficiency and prompting optimal drying and reducing curing time.
Temperature can be controlled via a Pyrometer on each panel on the system. Allowing for even distribution on the most difficult spots, resulting in reduced spray booth cycle times.
The space saving installation on aluminum rails allows for movement of the lamps along the length and width of preparation areas and spray booths within the body shop.
Aerial Curing Systems Make
Spanesi’s innovative Inframatic Series is designed to optimize space and improve painy drying efficiency. These state-of-the-art systems utilize special aluminum rails that allow for flexible positioning within preparation areas and spray booths, minimizing space requirements. Each lamp can be specifically adjusted in height and angle to achieve the optimal surface radiation.
The user-friendly 8-program electronic control panel simplifies operation and improves technician efficiency. Compared to traditional curing lamps, our Inframatic series feature high-efficiency resistors that concentrate heat output, resulting in a 150% increase in energy efficiency and a 35% reduction in energy consumption.
With the optional UV-A LED Panels, products with sensitive components can be dried in a more efficient and safe manner. This optional UV-A panels is the core difference between our three Inframatic models; EVO 2, EVO 2 +2 UV-A, and EVO 2 + 3 UV-A.
Flexible. Efficient. Powerful.
Optional
Get more out of your Inframatic Series with optional accessories from Spanesi. Expand the capabilities of your curing lamp to increase service offerings and improve technician repair options and vehicle compatibility.
Click each accessory to learn more.
Electrical output 150 W per manual lamp. Wavelength 395 mm +/- 5 mm. Power density 400 mW/CM2 (5 cm from the substrate)
Get the aerial curing system of your dreams with the Spanesi Inframatic. Our lamps provide high efficiency curing and an optimal space saving design.
