Experience our next-level spot welding machines, with pre-set programs for precision results that meet even the most strict OEM requirements.
Auto Water-Cooled Inverter Spot
Spot Welding Machines With
Our Automatic Water-Cooled Inverter Spot Welding Machines are capable of welding all types of steel, including high-strength and ultra-high steel. Versatile and expansive, our machines are a must for any collision repair facility.
The integrated inverter ensures excellent penetration into substrates and precision welds. Water-cooling ensures safe and consistent operation by preventing welding machine components from overheating.
In automatic mode, technicians can utilize pre-set programs to deliver high quality results. For manual welding, the technician can select the appropriate materials and thicknesses, providing flexibility for a wide range of applications.
Designed for mobility and convenience, each spot welding machine can easily maneuver throughout your repair facility. Side pockets provide convenient storage for arms, while the included toolbox offers a practical solution for organizing accessories.
Automatic Water-Cooled Inverter
Versatile welding machines designed for both automatic and manual applications. In automatic mode, technicians utilize pre-set programs to deliver precise welds on various types of steel, including HSS and UHSS. The machine’s control panel allows for easy adjustment of welding parameters like current, pressure, and duration, ensuring optimal results.
For manual welding tasks, the technician can select the appropriate materials and thicknesses, providing flexibility for a wide range of applications. The integrated inverter technology ensures precise welds across different types of steel, meeting the stringent requirements of OEMs. To further assist technicians, dedicated software allows for easy export and storage of welding data, facilitating analysis and documentation.
The welding gun can be used comfortably in all positions, enhancing operator efficiency and reducing fatigue thanks to the rotating rod with slide. To further improve safety, the machine incorporates a hoist to support the welding gun during use and water cooling to prevent overheating of critical components.
Complete with gun support slide for comfortable welding.
Ensures support of the wedling gun during use.

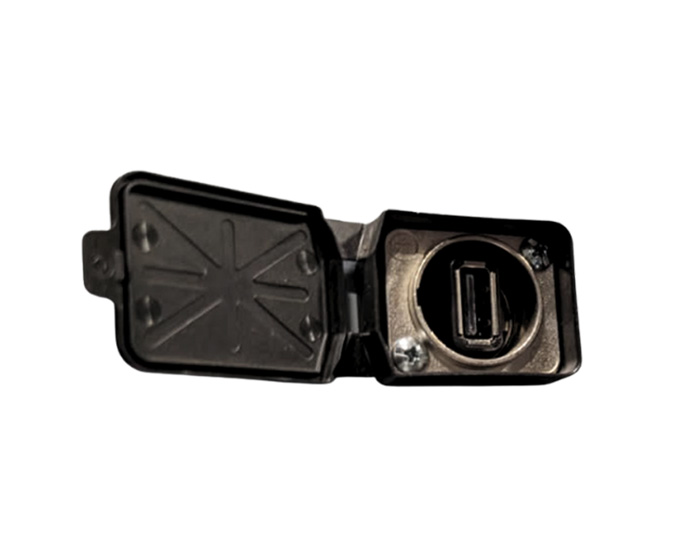

For easy exporting of project welding data.
Integrated into the machine or the gun based on model.
Provides an easily accessible spot for storing arms.
Spot Welding Machine
A water-cooled inverter spot welding machine with “C” gun and spotter. This powerful unit is capable of manual welding, has 50 preset welding programs + 50 more available, and features a multifunctional display with membrane keyboard and a gun support hoist.
| 12500A C Specifications: |
|---|
| Rated Power @ 50%: 25 KVA |
| Max. Sec. Short-Circuit Current: 13 ka |
| Rated Frequency: 50/60 HZ |
| Delayed Fuses: 32 A |
| Sec. Voltage W/o Load: 16 V |
| Gun Weight: 15.4 lbs |
| Connection Power 400/200V (3-Phase): 20 KVA |
| Gun Cable Length: 8' 2" |
| Cooling Tank Capacity: 2 Gal |
| Electrode Cone Dia.: 12 mm |
Spot Welding Machine
A water-cooled inverter spot welding machine with automatic “C” gun. This upgraded version features automatic welding with pre-set programs, a touch screen control panel, automatic thickness and material recognition, and is capable of manual welding.
| 14500A C Specifications: |
|---|
| Rated Power @ 50%: 13 KVA |
| Max. Sec. Short-Circuit Current: 15 ka |
| Rated Frequency: 50/60 HZ |
| Delayed Fuses: 16/32 A |
| Sec. Voltage W/O Load: 6.5 V |
| Gun Weight: 19.84 lbs |
| Connection Power 400/200 V (3-Phase): 20 kva |
| Gun Cable Length: 9' 10" |
| Cooling Tank Capacity: 2 Gal |
| Electrode Cone Dia.: 12 MM |

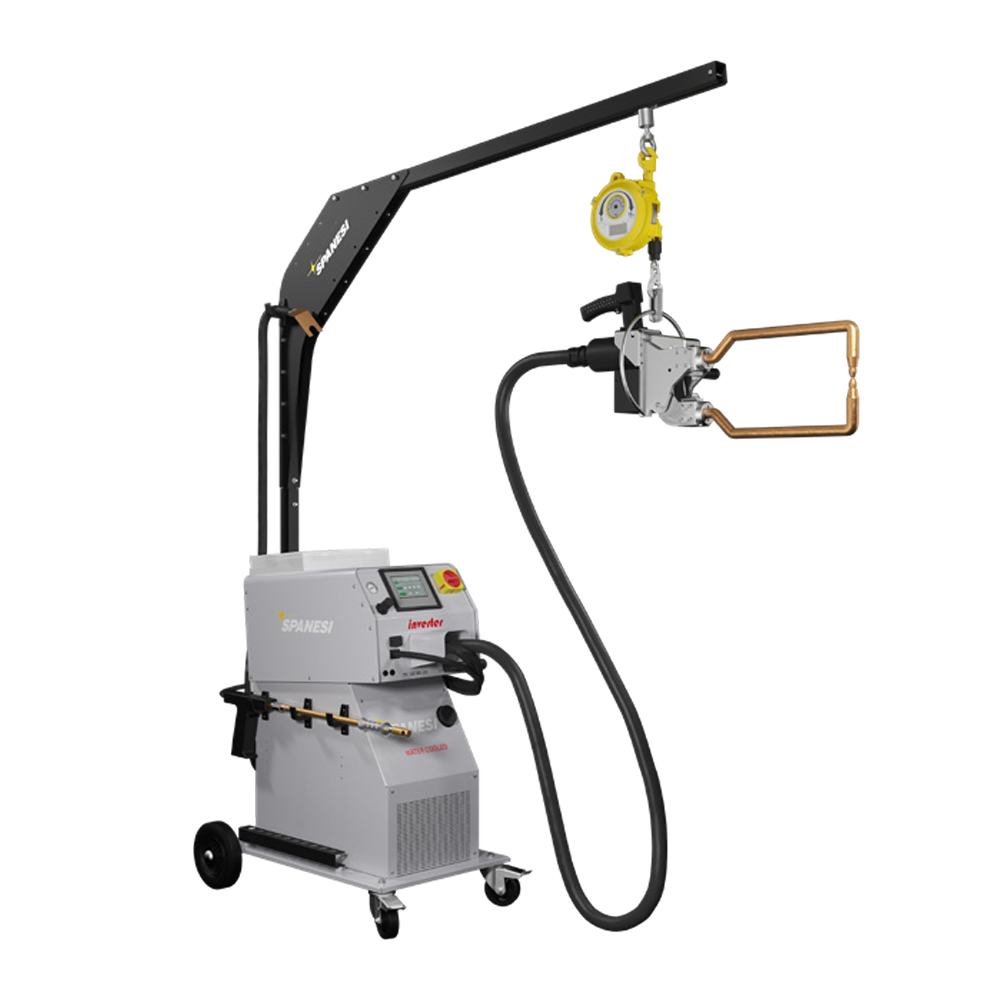

Spot Welding Machine
A water-cooled inverter spot welding machine with “X” gun and spotter. This powerful spot welder features 50 preset welding programs with 50 more available, a gun support hoist, manual welding options, and a multifunctional display.
| 12500A X Specifications: |
|---|
| Rated Power @ 50%: 25 KVA |
| Max. Sec. Short-Circuit Current: 13 ka |
| Rated Frequency: 50/60 HZ |
| Delayed Fuses: 16 A |
| Sec. Voltage W/o Load: 6.5 V |
| Gun Weight: 10.1 - 11.4 lbs |
| Connection Power 400/200V (3-Phase): 20 KVA |
| Gun Cable Length: 8' 2" |
| Cooling Tank Capacity: 2 Gal |
| Electrode Cone Dia.: 12 mm |

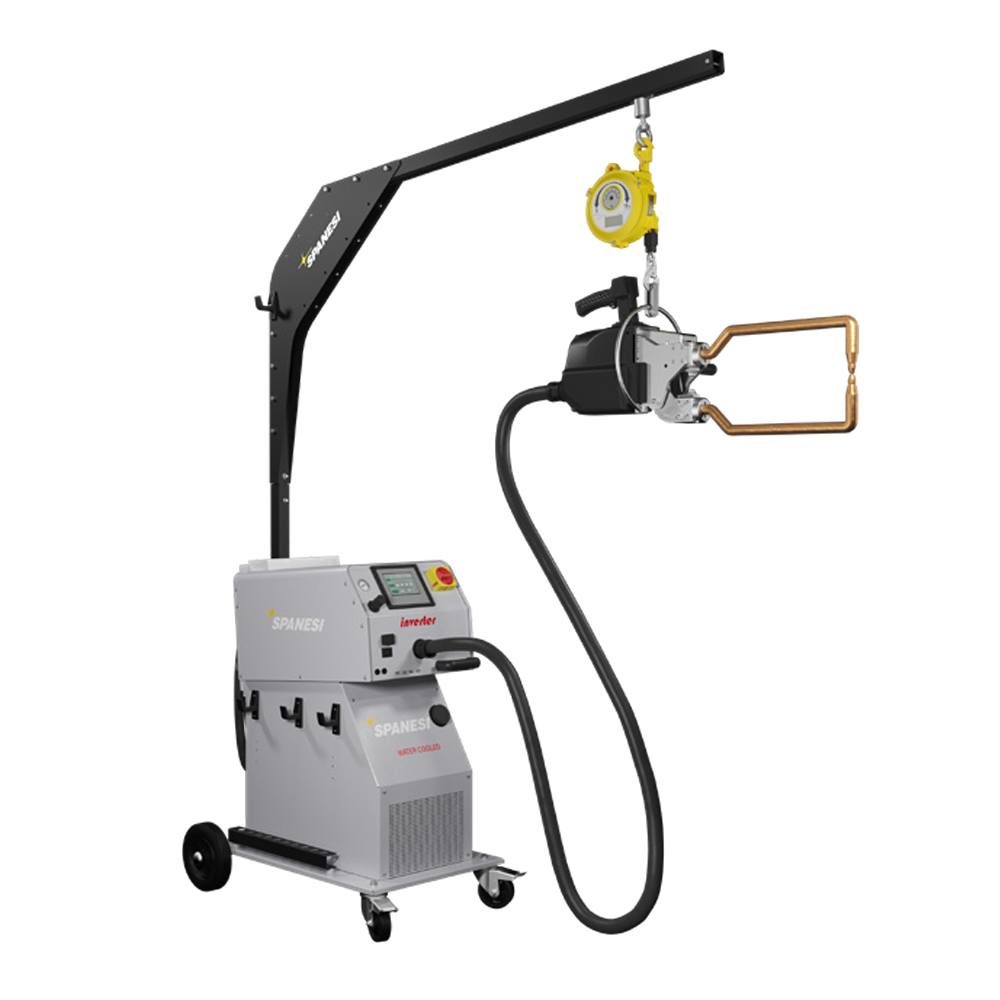

Spot Welding Machine
A water-cooled inverter spot welding machine with “X” gun. This upgraded version features automatic welding with pre-set programs, transformer integrated into the gun, hoist for support and multifunctional display.
| 14500A X Specifications: |
|---|
| Rated Power @ 50%: 25 KVA |
| Max. Sec. Short-Circuit Current: 13 ka |
| Rated Frequency: 50/60 HZ |
| Delayed Fuses: 32 A |
| Sec. Voltage W/O Load: 16 V |
| Gun Weight: 26.4 - 27.7 lbs |
| Connection Power 400/200 V (3-Phase): 20 kva |
| Gun Cable Length: 9' 10" |
| Cooling Tank Capacity: 2 Gal |
| Electrode Cone Dia.: 12 MM |
Precise. Advanced. Convenient.
Optional
Get more out of your spot welding machines with these optional accessories. Our accessories can increase service offerings, capabilities, and improve technician repair options.
Click each accessory to learn more.

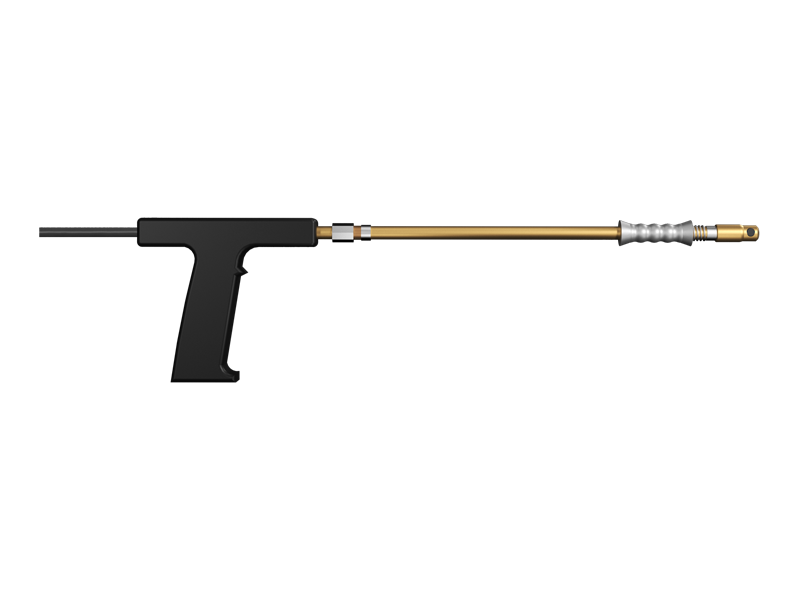

Compatible spotter for the 14500A C and 14500A X.

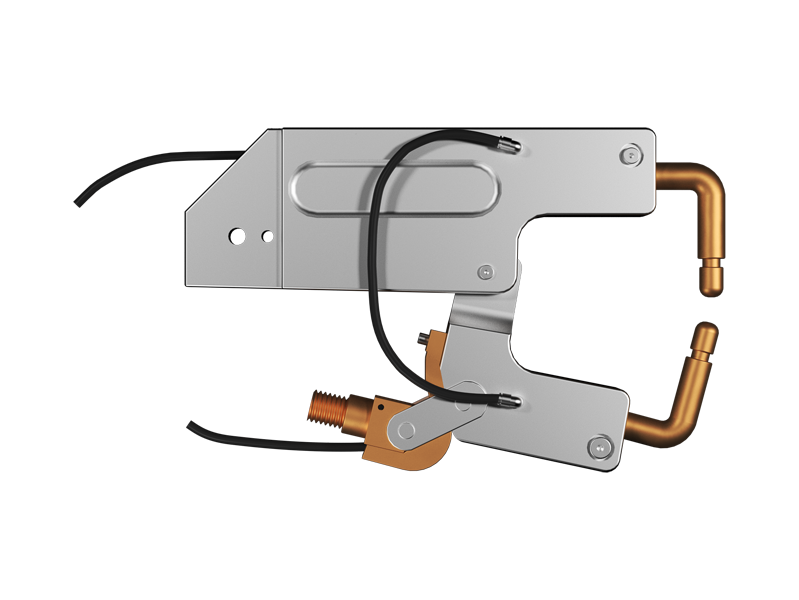

Compatible with the 12500A C and the 14500A C.
Compatible with the 12500A X and the 14500A X.
Weld even the toughest steel with ease and precision with Water-Cooled Inverter Spot Welding Machines from Spanesi.
